Arduino Open Source IoT Gateway
USR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory onboard.
Processor
ESP32 Chipse
Opensource
SDK demo provided
Rich Interface
RS232/485,IO,Ethernet,Wi-Fi
Easy to Develope
C and Python

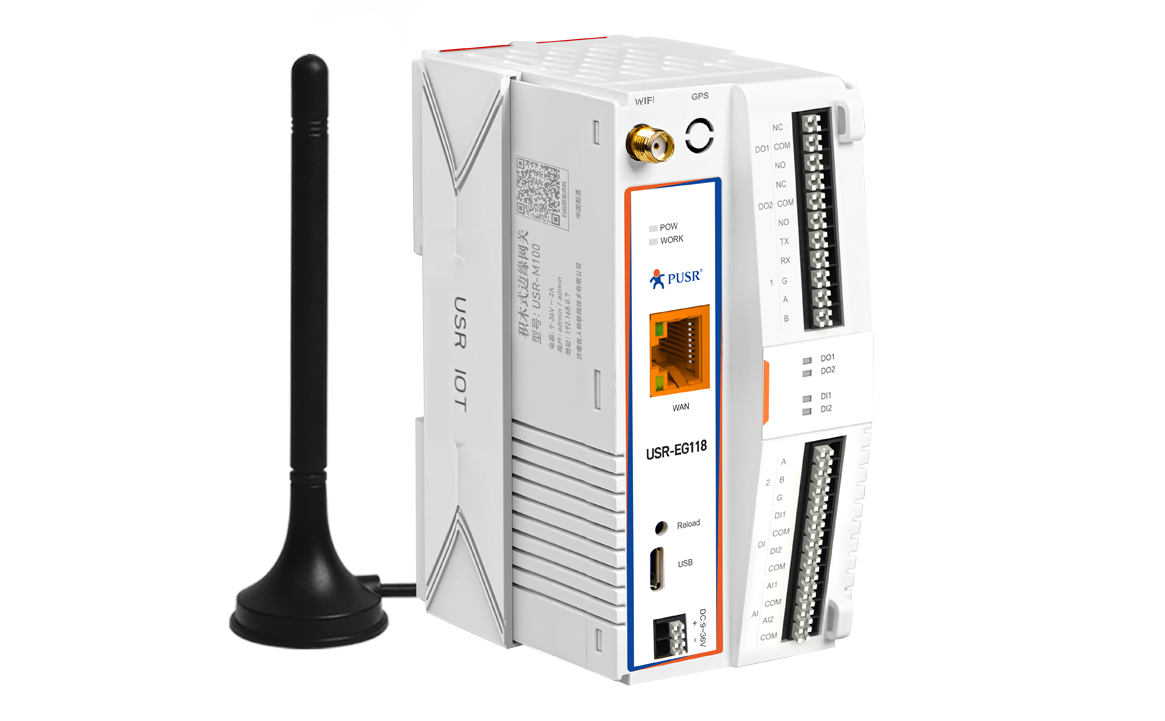

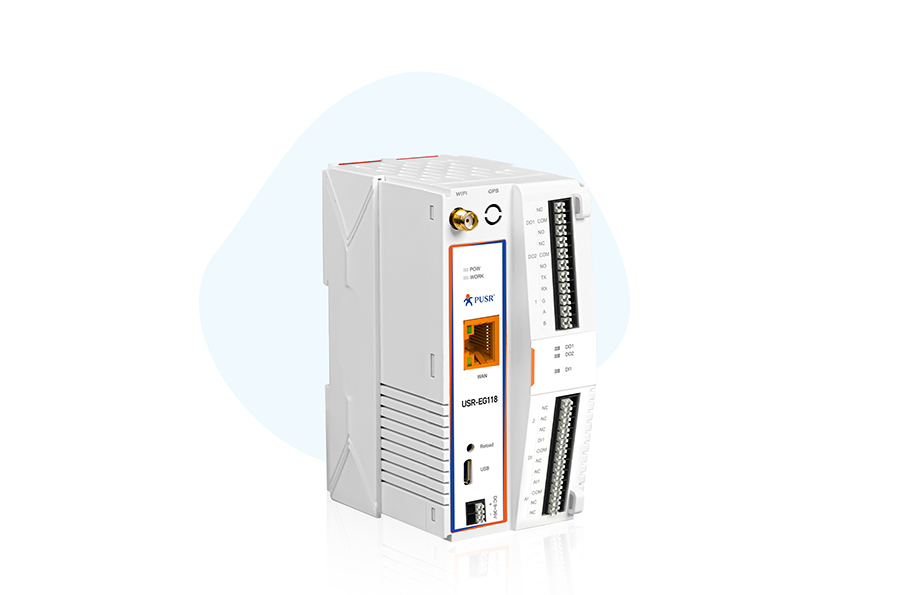

USR-EG118
Open Source IoT Gateway
ESP32 Chipset, C Language SDK, Arduino IDE Development
USR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory on-board. With its integrated Wi-Fi/BLE module and additional wired/wireless interfaces, this device becomes a highly versatile addition to Industrial IoT solutions.

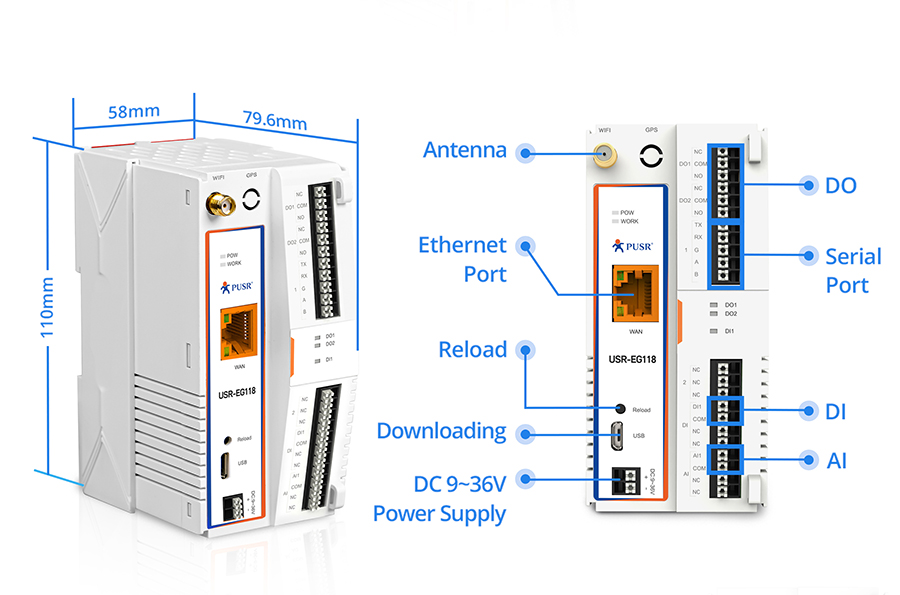

Rich Hardware Interface
- Serial Port: 1*RS485/232.
- I/O: 2*DO, 1*DI, 1*AI.
- Ethernet: 1*RJ45.
- Wi-Fi: 802.11b/g/n.
- Transmitting power: up tp 20.5 dBm.
- Theory Speed: Up tp 150Mbps.
- Radio frequency: 2412 ~ 2484 MHz.
- BLE: Compatable with BEL4.2.
- Installation: Wall & DIN Rain mounting

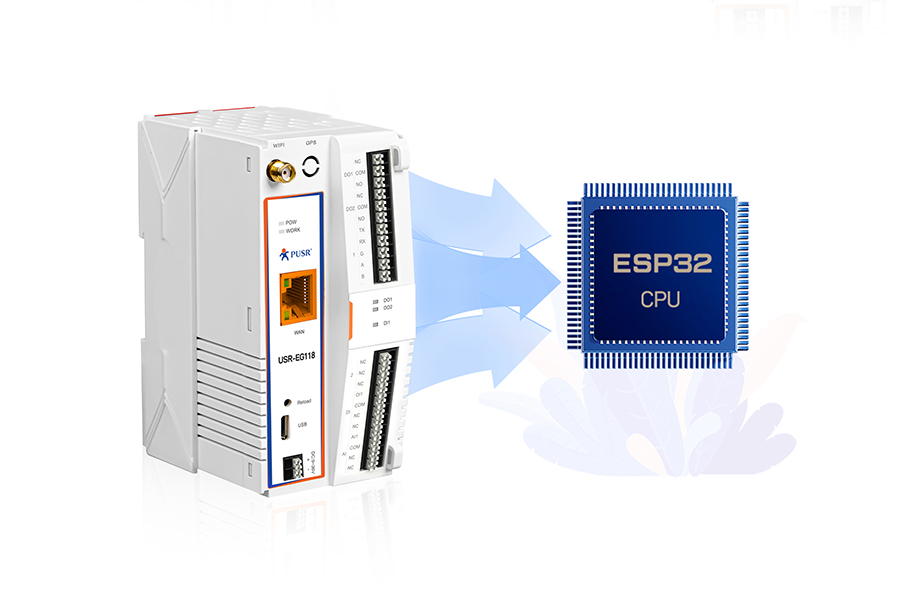

ESP32-WROVER-E
- Professor: Dual-core Xtensa® 32-bit LX6 MCU.
- Main Frequency: Up to 1.2GHz.
- Flash: 4M.
- RAM: 8M.
